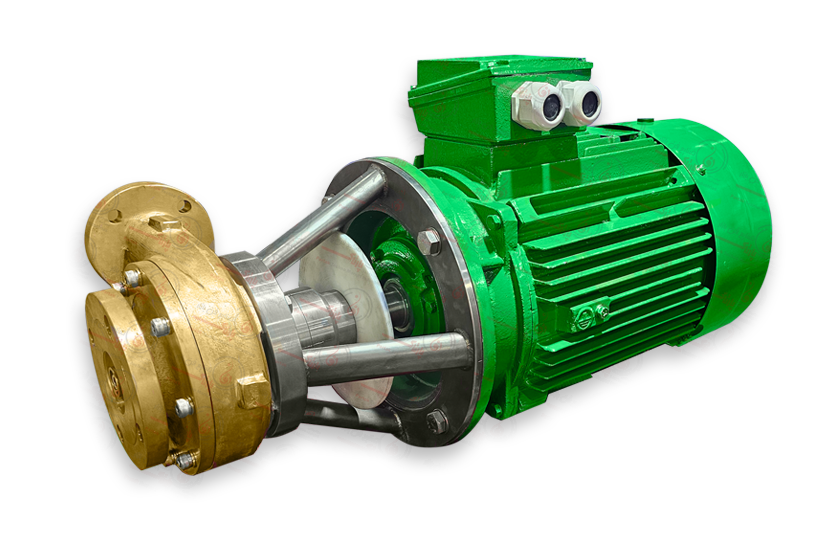

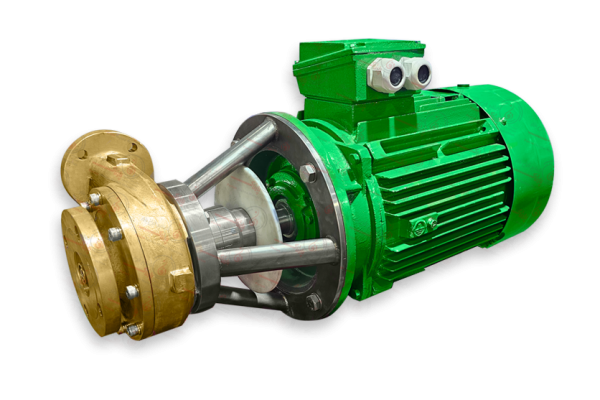

CRYOFAN(TM) - PCD Series

DIRECT DRIVEN

CENTRIFUGAL



The “Cryogenic Centrifugal Pump” (knowledge-based product), also known as “Cryogenic Liquid Transfer Pump” or “Tank-to-Tank Pumps”, is one of the essential equipment in gas condensate production and transfer systems, and there are only a handful of manufacturers in the world. When charging tanks using these pumps, there is no need to open the vent valve of the tank being charged. Also, pressurization in the charging tank is greatly limited. Therefore, by preventing the waste of cryogenic liquid, which is relatively expensive these days, it can be said that in most cases, in less than a year, in addition to profitability, it results in a return on initial investment. All design, machining (due to the extremely precise tolerances of the parts), balancing of rotating components, heat treatment, and chemical treatment of parts and components were carried out in the country and with local facilities. The quality control process is also being implemented continuously from beginning to end with precision.

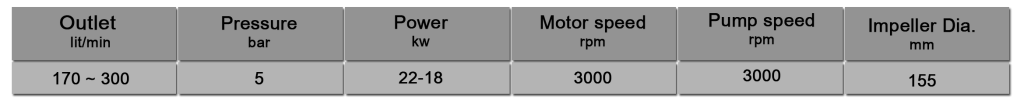

  • Gearless pump with a speed of 3000 rpm (low pressure)
  • Capacity 300 liters per minute
  • Inlet pressure 0.5 and outlet pressure 5 bar
  • Transfer type
  • Mechanical seal
